ABB MCBs & RCDs
ABB is a global leader in electrification and automation, supplying contactors, circuit breakers, switches, metering and control products for industrial and building installations. SSC Control is an authorised ABB partner, supplying the full range with genuine products, warranty and technical support across Gujarat and India.

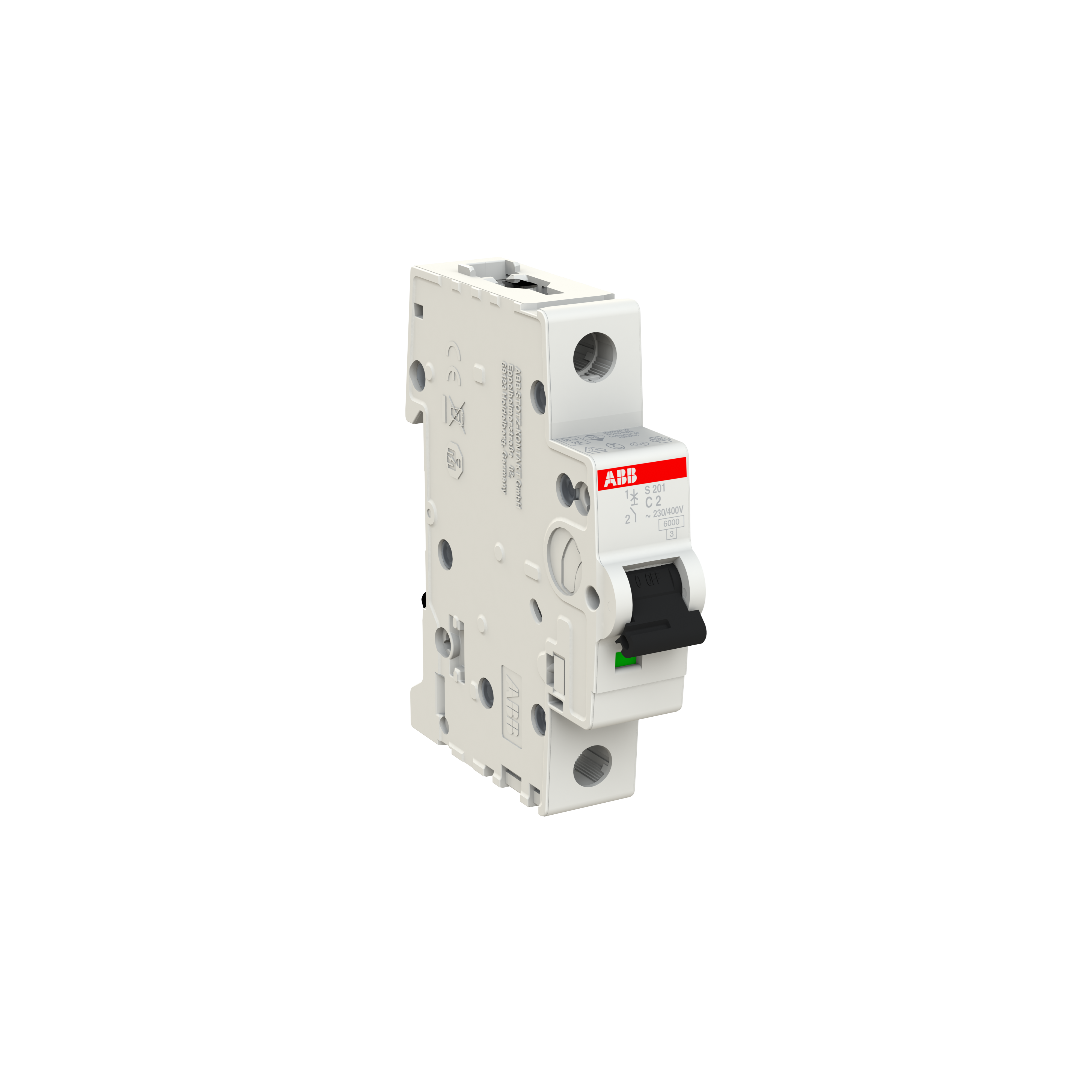

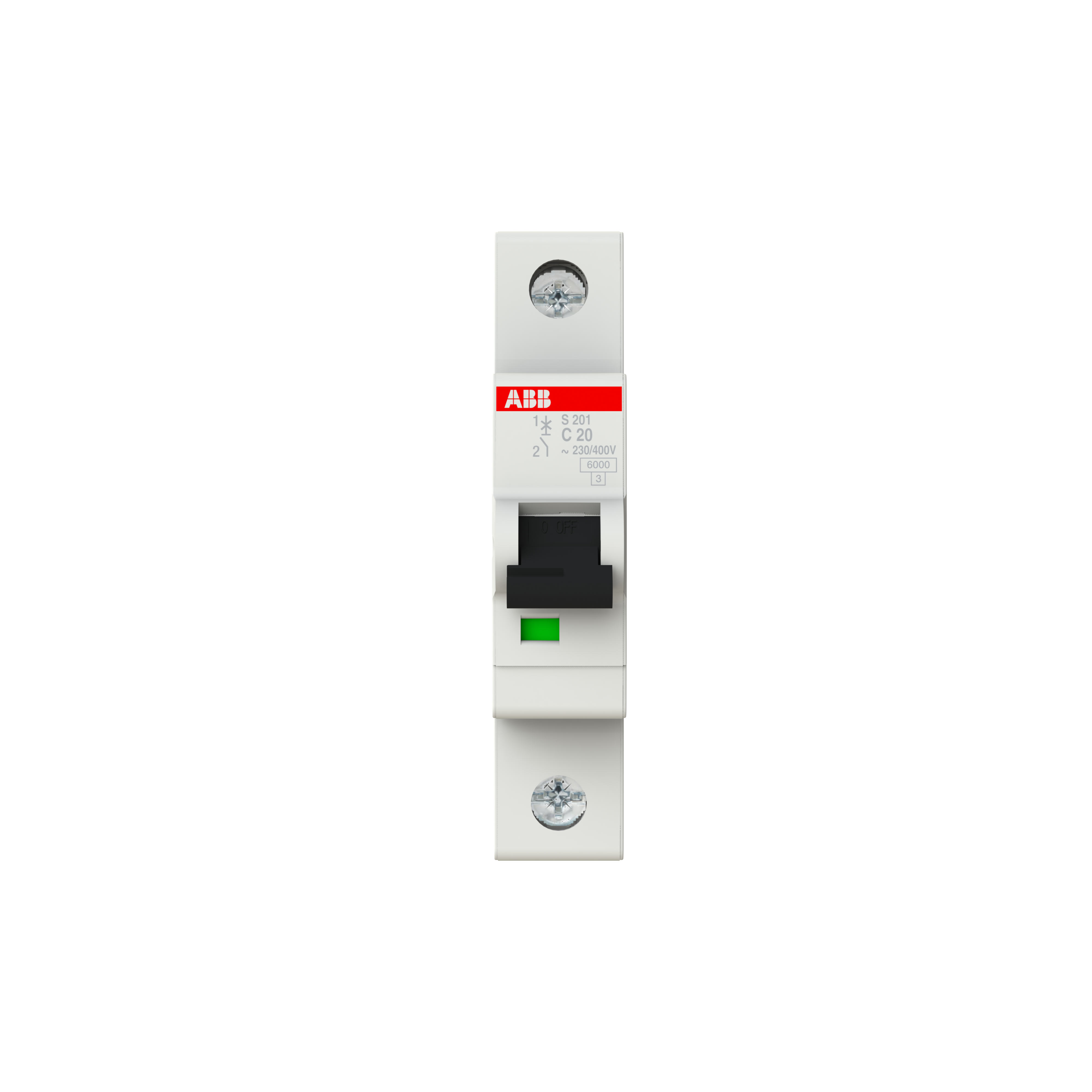

S200 MCB
General purpose miniature circuit breaker for overload and short circuit protection in distribution boards.
- Rating: 0.5 to 63 A
- Poles: 1 / 2 / 3 / 4
- Breaking: 6 to 25 kA
- Curve: B / C / D
- Use: final circuit and feeder protection

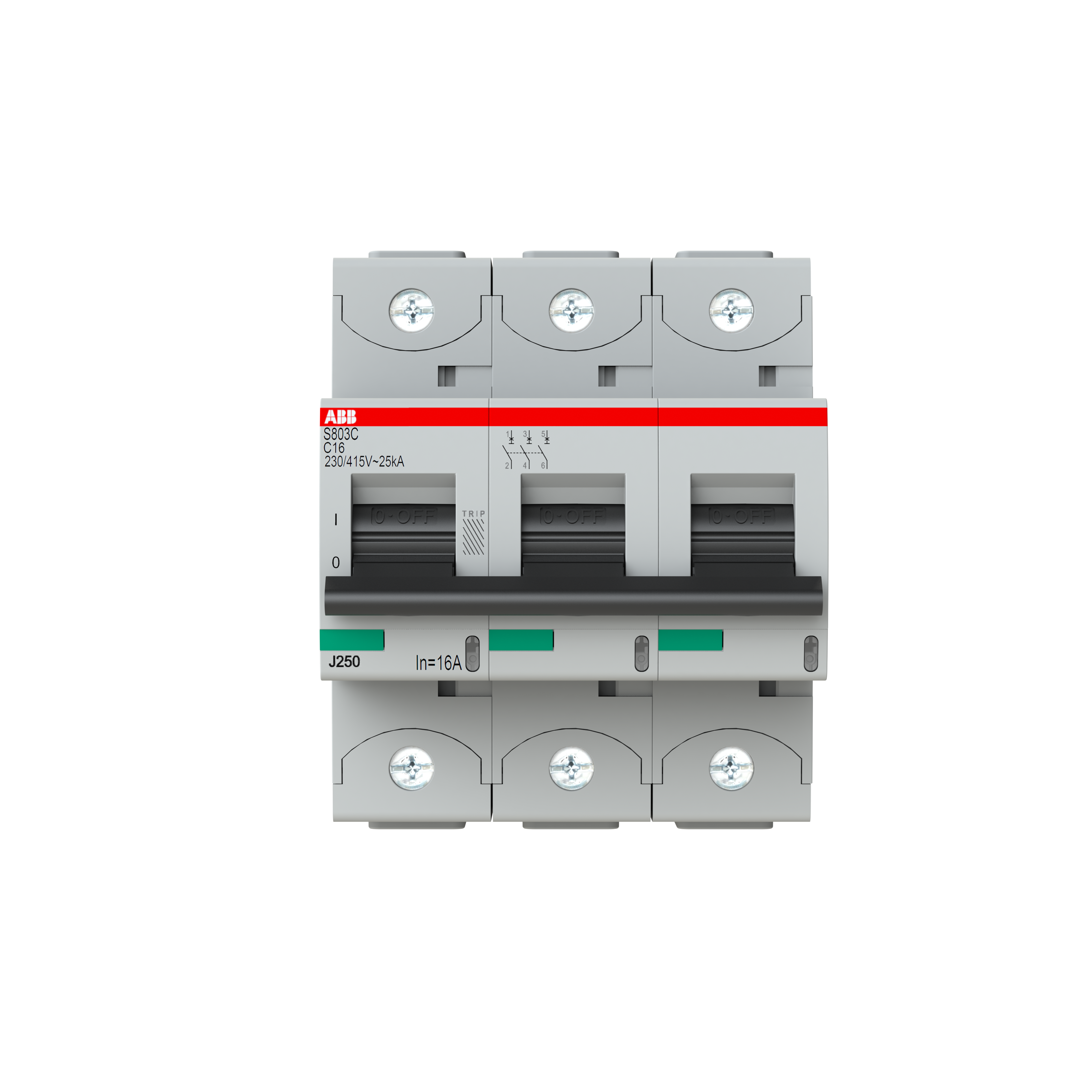

S800 High Performance MCB
High performance current limiting MCB for heavy duty industrial and renewable systems.
- Rating: 10 to 125 A
- Poles: 1 / 2 / 3 / 4
- Breaking: up to 50 kA
- Curve: B / C / D / K
- Use: industrial heavy duty and back up protection

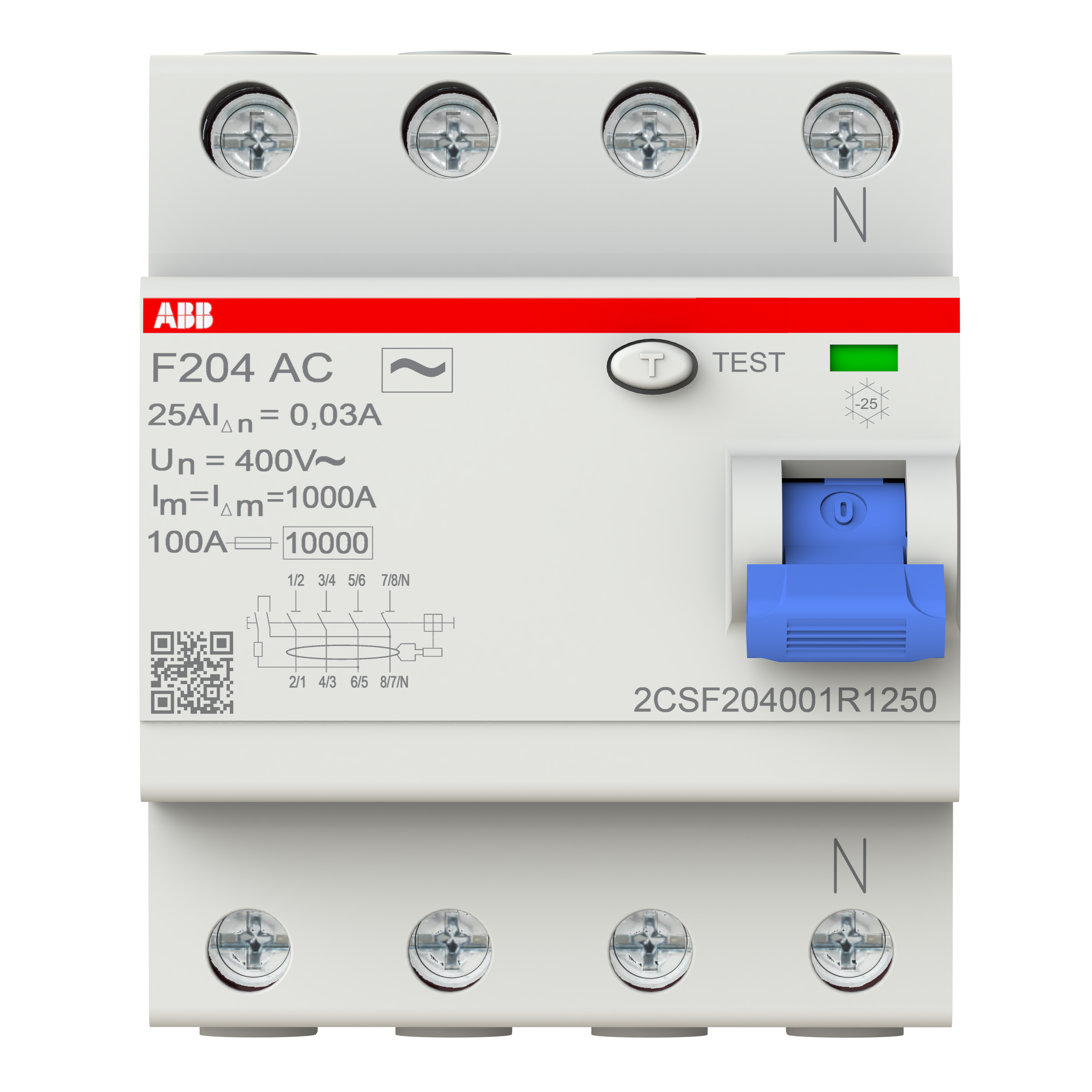

F200 RCCB
Residual current circuit breaker that protects against earth fault currents and indirect contact.
- Rating: 25 to 125 A
- Poles: 2 / 4
- Sensitivity: 30 / 100 / 300 mA
- Breaking: 10 kA
- Use: earth fault and shock protection

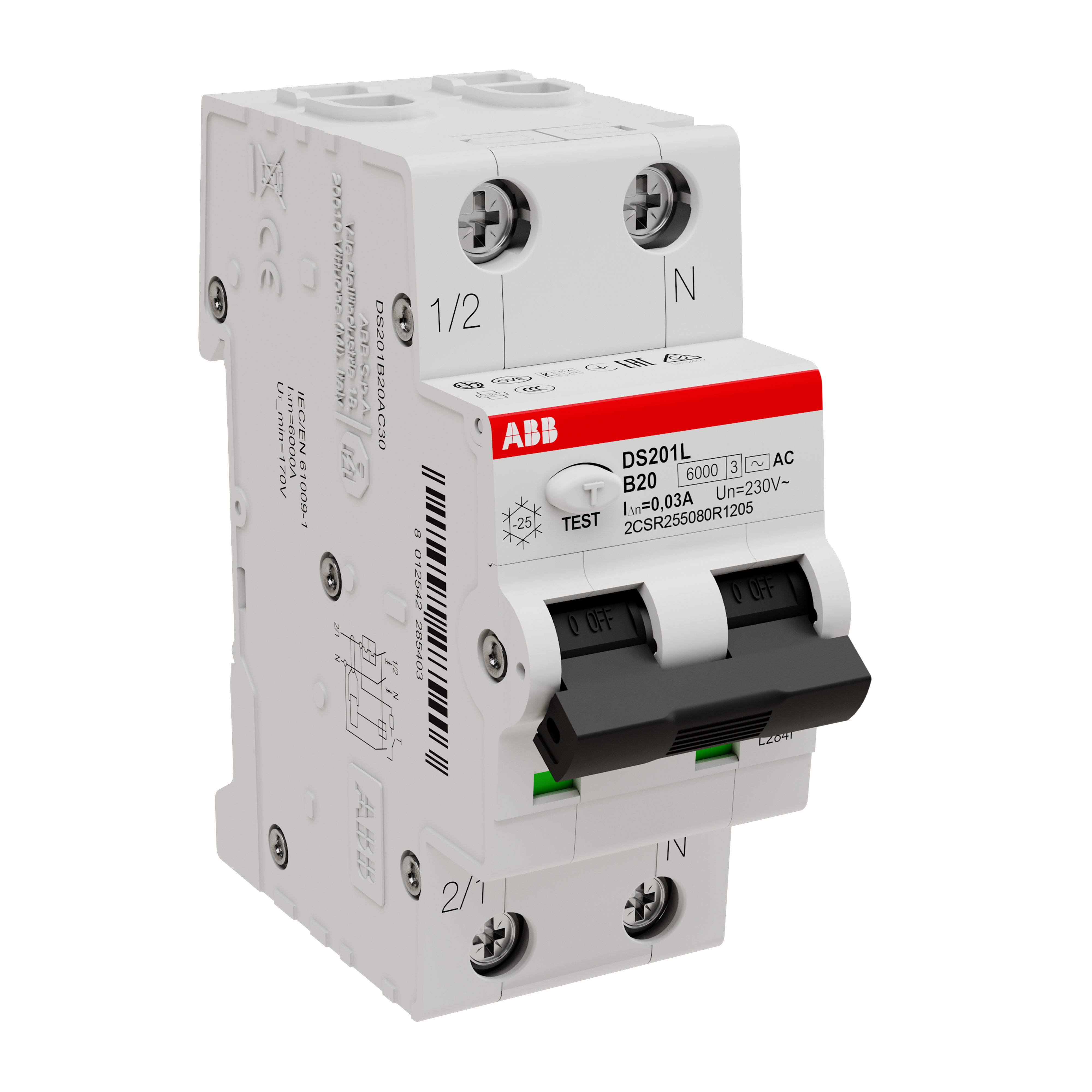

DS201 RCBO
Single module device combining overload, short circuit and earth fault protection for single phase circuits.
- Rating: 6 to 40 A
- Poles: 1P + N
- Breaking: 6 to 10 kA
- Curve: B / C
- Use: combined overcurrent and residual current protection
Need an MCB or RCD?
Our team can specify the MCB, RCCB or RCBO rating and curve for your board.
